Description
Specification

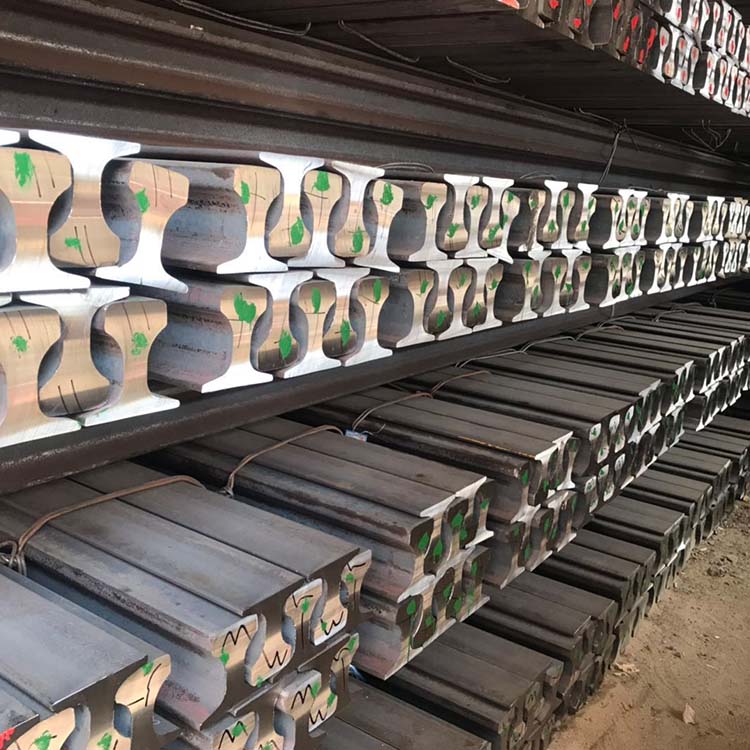

Name of Products:Steel Rail
Specification(KGS/M):9kg,12Kg,15Kg,18kg,22Kg,24Kg,30Kg
| THE LIST OF YYGT | ||||||
| Name of Commodity | Specificaton | Materials (Steel Grade) | Standard of Products | Theory Weight (kgs/M) | Length of Dimension (M) | Packed In Bundle With Iron Wire (pcs/bundle) |
| Light Rail | 4kgs/m | Q235 | Q/YYG001-2008 | 4kgs/m | 6,8,9,10 | 75 |
| 8kgs/m | Q235 | Q/YYG001-2008 | 8.42kgs/m | 55 | ||
| 12kgs/m | Q235 | GB11264-89 | 12.2kgs/m | 36 | ||
| 15kgs/m | Q235/55Q/50Q | GB11264-89 | 15.2kgs/m | 28 | ||
| 18kgs/m | Q235/55Q/50Q | YB222-63 | 18.06kgs/m | 21 | ||
| 22kgs/m | Q235/55Q/50Q | GB11264-89 | 22.3kgs/m | 21 | ||
| 24kgs/m | Q235/55Q/50Q | Q/YYG001-2008 | 24.46kgs/m | 21 | ||
| 30kgs/m | Q235/55Q/50Q | GB11264-89 | 30.1kgs/m | 15 | ||
| Heavy Rail | 38kgs/m | U71Mn/U71 | GB2585-81 Q/YYG002-2008 | 38.733kgs/M | 12,12.5 | 10 |
| 43kg/m | U71Mn/U71 | GB2585-81 Q/YYG002-2008 | 44.653kgs/M | 10 | ||
| 50kgs/m | U71Mn/U71 | GB2585-81 Q/YYG002-2008 | 51.514kgs/M | 10 | ||
| 45/50Mn | Q/YYG002-2008 | 31/34/36/39/41kgs/M | 12,12.5 | 10 | ||
| Crane Rail | QU70 | U71Mn | YB/T5055-93 | 52.8kgs/m | 12,12.5 | 10 |
| QU80 | YB/T5055-93 | 63.69kgs/m | 10 | |||
| QU100 | YB/T5055-93 | 88.96kgs/m | 5 | |||
| QU120 | YB/T5055-93 | 118.1kgs/m | 5 | |||
| I-beam of Hot-Rolled Section Steel for Mine | 9# | 20MnK/ Q235 | YB/T5047-2000 | 17.69kgs/m | 8,9,10 | 28 |
| 11# | YB/T5047-2000 | 26.05kgs/m | 18 | |||
| 12# | YB/T5047-2000 | 31.18kgs/m | 15 | |||
| Hot-Rolled U-Beam Steel for Mine Timbering | 25U | 20MnK/ Q275 | GB4697-1991 /Q/YYG006-2008 | 24.95kgs/m | 8,9,10,12 | 15 |
| 29U | GB4697-1991 | 29kgs/m | 15 | |||
| 36U | Q/YYG006-2008 | 35.87kgs/m | 15 | |||
| Name of Commodity | Specificaton Equal to rails | Materials | Standard of Products | Theory Weight (kgs/set) | Length of Dimension (mm) | Packed In Bundle With Iron Wire (set) |
| Fish Plate | 4/9kgs/M | Q235B or … | GB11265-89 | 0.80 | ≈270-385 | 50 |
| 1.00 | ||||||
| 12kgs/M | GB11265-89 | 1.10 | ≈409 | 50 | ||
| 1.30-1.50 | ||||||
| 15/18kgs/m | GB11265-89 | 1.80-2.00 | ≈372-409 | 25 | ||
| 2.20-2.50 | ||||||
| 2.80-3.00 | ||||||
| 22/24kgs/M | GB11265-89 | 3.30-3.50 | ≈426-510 | 20 | ||
| 3.80-4.00 | ||||||
| 4.20-4.50 | ||||||
| 30kgs/m | GB11265-89 | 5.50-7.50 | ≈561 | 10 | ||
| 8.20-8.50 | ||||||
| 38/43/50kgs/m | GB185-63 | 24-30 | ≈790 | 1 | ||
Product Description
Company Information
Company Introduction
China Good New Materials Technology Co.,Ltd is a well-known metal steel supplier with 20 years industry experience,which is located in Jiangsu Province,nearby Shanghai port.As a leading manufacturer of steel materials,the enterprise has established good cooperative relationships with other famous steel plant like TISCO,Bao Steel ,Anshan Iron and Steel,Hongwang Stainless,Chalco,Copper Capital and so on,enhancing its capacity to offer best reliable sources of products to clients.
Our Team and Office

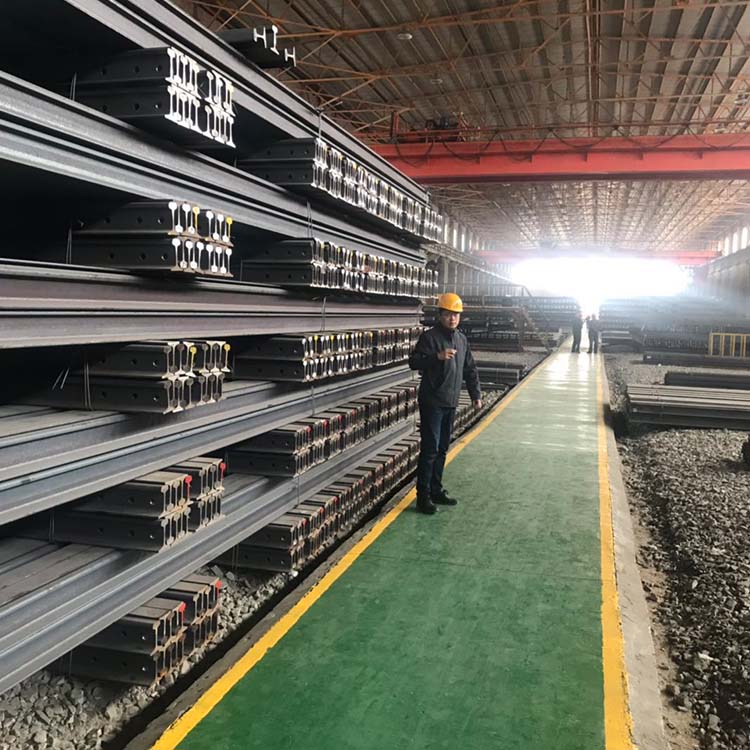

Our Factory and Workshop
Packaging & Shipping
FAQ
Q1. Are you a factory or just a trading company?
A1:We have both factory and trading company,own branch factory and warehouse in Jiangsu,Shandong Province and Tianjin to provide you best price and quality source goods ,and have professional International marketing team to offer you wide range of personalized services.
Q2. What are your company's main products ?
A2: Our main products cover high quality special steel like stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.Hastelloy,Inconel,maraging steel, austenite steel,super duplex stainless steel,carbon steel, copper and aluminum products.
Q3. How do you control quality ?
A3: Mill Test Certification is supplied with shipment, Third Party Inspections are all available.
Q4. What are the advantages of your company ?
A4: We focus on maximum product performance and customer experience with scientific minimum cost,you will get most cost-effective goods.
Q5. How many coutries you already exported ?
A5: Exported to more than 50 countries mainly from Asia countries like Singapore,Indonesia,Vietnam, Bangladesh,Korea,European countries like England,Belgium,Spain,Italy,Russia,Arabian countries like UAE ,Kuwait,Qatar ,Syria,America countries like USA,Mexico,Chili,Peru,South Africa countries... and so on.
Q6. Can you provide sample ?
A6: Small samples in store and can be provided for free without freight. Customized samples will take about 5-7days.
